BMW’s sixth-generation eDrive platform is the company’s most comprehensive redesign of its battery, power electronics, and charging systems since the original i3. Unlike earlier generations, which evolved through incremental changes, Gen6 introduces a new battery format, pack structure, voltage architecture, thermal concept, charging software backend, and energy-management strategy. It is a clean-sheet system shaped entirely by electrochemical limits, thermal behavior, and real-world charging data.
800 Volt Architecture

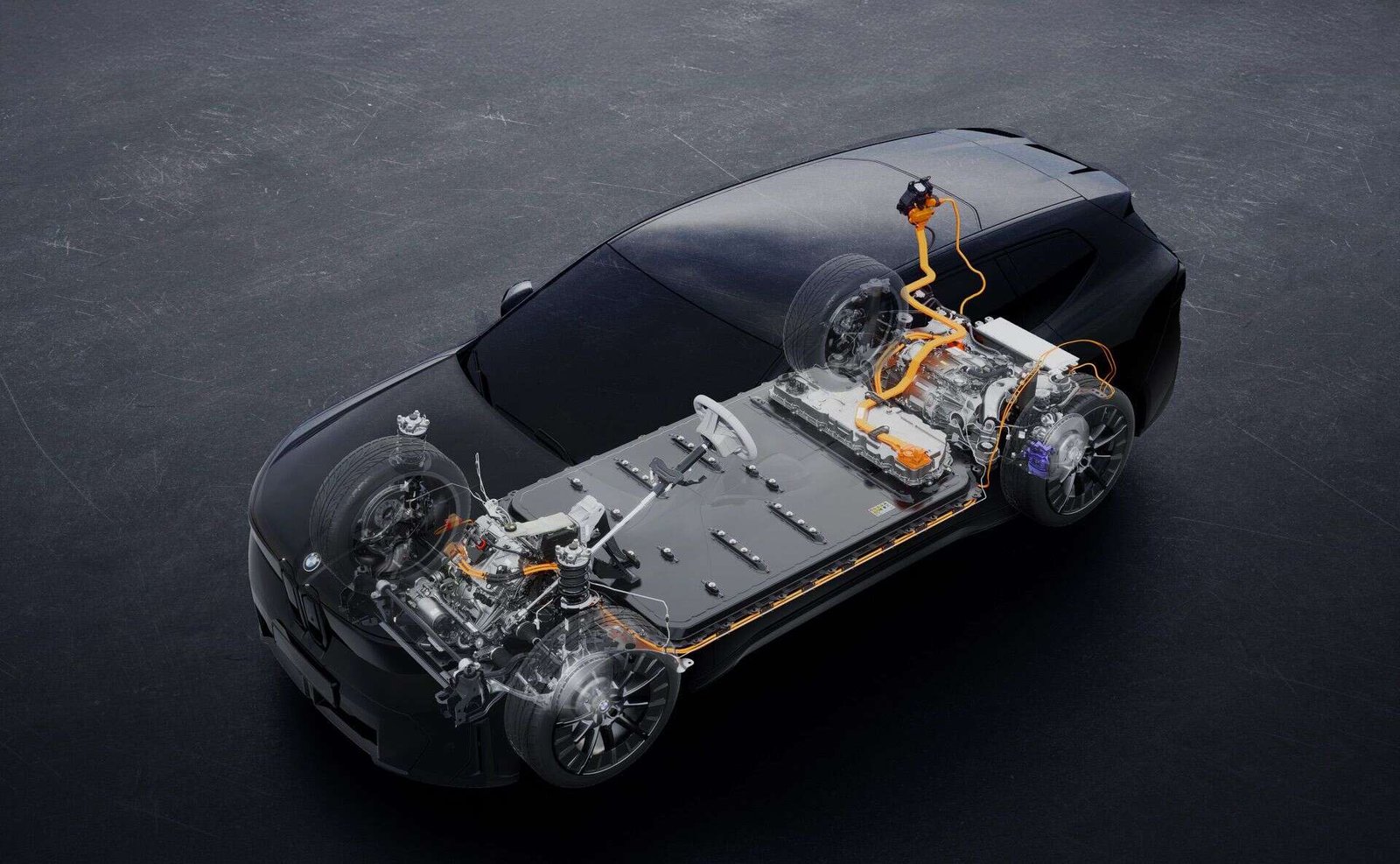

At the core of the platform is a transition from a 400-volt to an 800-volt battery pack. The new pack uses cylindrical cells arranged in a cell-to-pack configuration without modules or structural struts. Removing intermediate housings increases usable volume and reduces electrical and thermal resistance between cells and cooling surfaces. BMW’s cylindrical format was chosen for its lower internal resistance, more uniform heat distribution, and improved fast-charge ion transport — qualities essential for achieving high peak charging power and maintaining stability under high current.
What is the Energy Master?
The new pack design is flat, spanning the underbody in a single layer to optimize thermal flow, reduce pressure drop in coolant channels, and shorten current paths. BMW also integrates an “Energy Master” unit directly into each high-voltage battery. This centralized control module manages high-voltage and low-voltage distribution, battery protection, communication with the charging system, and all bidirectional energy functions. Because of this architecture, Gen6 vehicles require no additional hardware for V2H, V2G, or V2L. Every required component is native to the pack and drive electronics, so bidirectional capability adds no weight to the vehicle.
400kW Charging
One of the most important aspects of Gen6 is how the battery charges. During a workshop in Spain, engineers were asked directly how the new iX3 50 xDrive achieves its peak 400 kW fast-charging figure and how long it maintains it. Their answer established a clear principle: the charging curve is defined solely by cell chemistry and internal resistance, not by software smoothing or idealized targets. The battery does not attempt to hold peak power beyond what the cells can accept.
Peak charging power becomes available just above ten percent state of charge. The pack is not capable of receiving full current at the bottom of the SOC window; internal resistance and voltage behavior at very low charge require a brief buildup. Once past that threshold, the pack holds 400 kW for roughly three minutes before it naturally settles to a sustained high-power plateau. This plateau lasts until a little above twenty percent SOC. Past that point, the combination of rising cell voltage and thermal load forces the system to taper.
BMW emphasized that the vehicle charges directly on the “cell limit line,” meaning the maximum safe current allowed by electrochemical constraints at each SOC. Nothing in the curve is artificially shaped for appearance. The tapering profile is governed entirely by the physics of the cylindrical cells.
This curve shape is central to how BMW approaches long-distance charging. The company demonstrated the system using a real route between Málaga and Barcelona — about 895 kilometers. The My BMW app calculated a single charging stop of about twenty minutes when starting with adequate charge. The accuracy of this guidance depends on backend improvements that debuted with Gen6. The first is an AI-powered geolocation correction layer for public chargers.
BMW says more than half of the public charging points in provider databases are incorrectly placed on the map. Its AI system uses fleet charging-session telemetry and approach-direction data to calculate the actual position of the charger. The correction can shift a POI by tens of meters, enough to eliminate common navigation frustrations like chargers placed on the wrong side of a parking structure or on an inaccessible road.
Lots of Backend Processing to Make Charging Smarter
The second backend improvement is BMW’s “Power Learning” system, which records the highest charging power any BMW vehicle has ever achieved at each station. This allows the route planner to replace optimistic operator-advertised values with observed real-world numbers. If a charger is rated for 350 kW but has never delivered more than 170 kW, the car will display that figure and plan charging stops accordingly. This helps position the charging session inside the narrow SOC window where the pack can truly sustain high power. Together, these two backend systems significantly tighten the gap between advertised charging conditions and what drivers actually experience.
Bidirectional Charging
Charging hardware and energy-management capabilities extend beyond fast charging. Gen6 introduces a full bidirectional power interface. Vehicle-to-home (V2H) operation feeds energy directly from the high-voltage battery to a home through the BMW Wallbox Professional. In Europe, the system supports up to 11 kW bidirectional operation. In the U.S., the same wallbox is rated up to 19.2 kWreflecting different residential electrical codes. BMW estimates that a typical renewable-equipped home could save several hundred euros per year by charging during low-cost periods or storing surplus solar energy for evening use. The vehicle manages its minimum SOC target and departure-time requirements automatically; the user only defines the boundaries.
BMW also supports vehicle-to-grid (V2G) operation, beginning with a commercial rollout in Germany through a partnership with E.ON. Engineers emphasized that grid services rely on shallow cycling within mid-range SOC windows to limit battery wear. BMW’s internal testing indicates that the resulting degradation remains within the margins of normal usage.
Vehicle-to-load (V2L) is implemented globally through the Multifunction Charger. This AC-based system enables the car to power tools, appliances, or small equipment at up to 3.6 kW. With adapters, multiple devices can be supported simultaneously, and in the U.S. the Multifunction Charger also provides a simple backup-power function for essential circuits, though full-house support still requires the DC wallbox.
Different AC Charging in the U.S.
A point of clarification emerged in the workshop regarding markets and AC charging. While European customers can choose between 11 kW or 22 kW AC onboard charging, BMW will ship all U.S.-bound iX3 models with AC Charging Professional as standard equipment. This option includes an onboard charger rated at approximately 15.4 KW and and also enables the full suite of bidirectional functions. BMW says a complete 0–100 percent AC charge using the 15.4 kW onboard charger takes roughly 7.5 hours, though the number is still subject to confirmation before launch.
Closing the Charging Flap via AI
Another feature introduced with Gen6 is the AI-controlled charging flap. The flap opens automatically when the car approaches a planned fast-charging stop or when it recognizes the direction and angle of approach to a familiar charging location such as a home driveway. A manual override is retained, but the automation is intended to eliminate an extra step during the charging routine.
